Plaats van herkomst: | Ningbo, Zhejiang, China |
Merknaam: | Suntech |
Certificering: | ISO |
Modelnummer: | LDE1800C |
Min. bestelaantal: | 500pcs |
---|---|
Prijs: | Get Latest Price |
Verpakking Details: | Binnendoos en buitenkantkarton |
Levertijd: | 25-30days na betaling |
Betalingscondities: | L/C, T/T, Western Union |
Levering vermogen: | 8000pcs/month |
Capaciteit: | 1800lbs (800kg) | Krachtbron: | Hand |
---|---|---|---|
Toepassing: | Boot | Materiaal: | Staal A3 of Roestvrij staal |
Toestelverhouding: | 5:1 | Remsysteem: | Automatische Rem |
Certificering: | CE | Oppervlaktebehandeling: | Met een laag bedekte macht of Geplateerd Zink |
Hoog licht: | automatic brake winch,trailer hand winch |

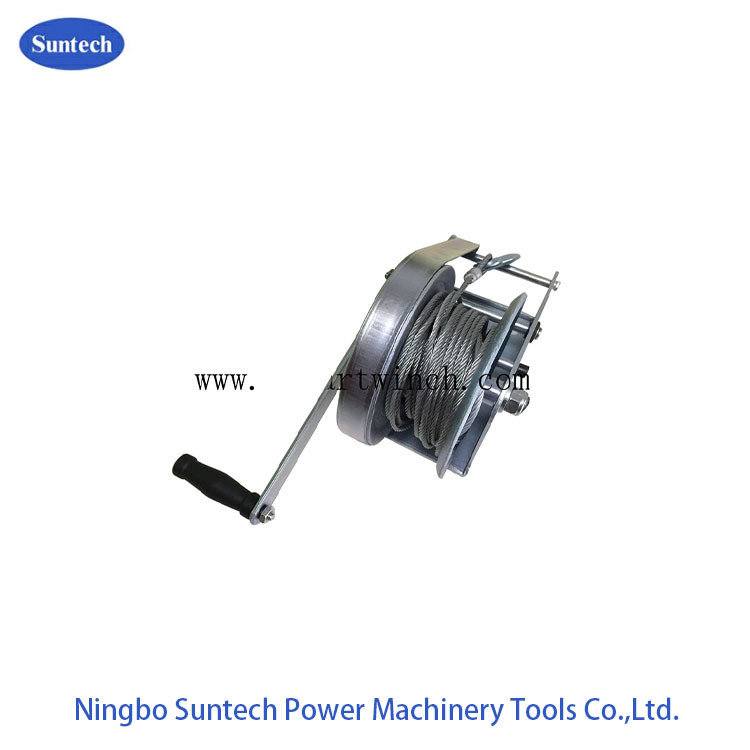

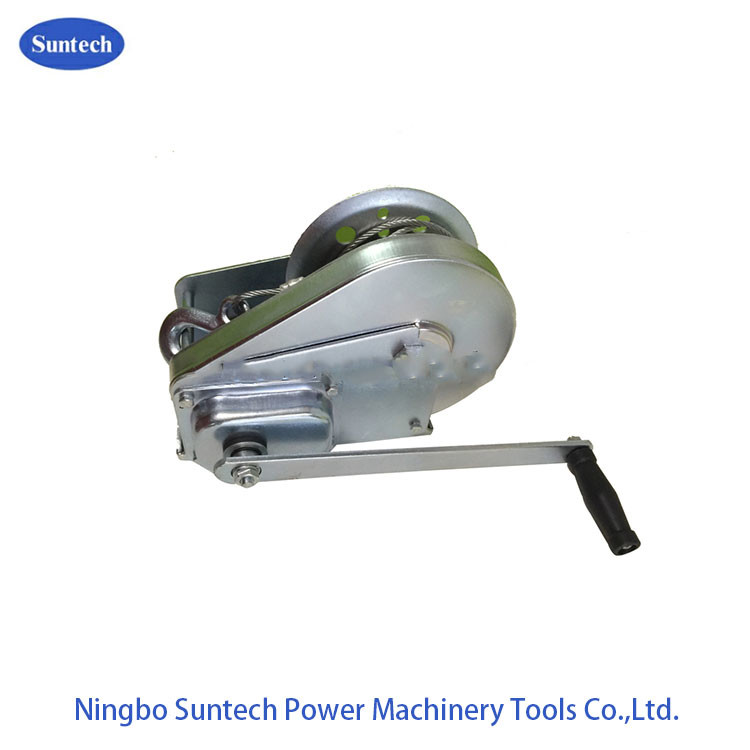

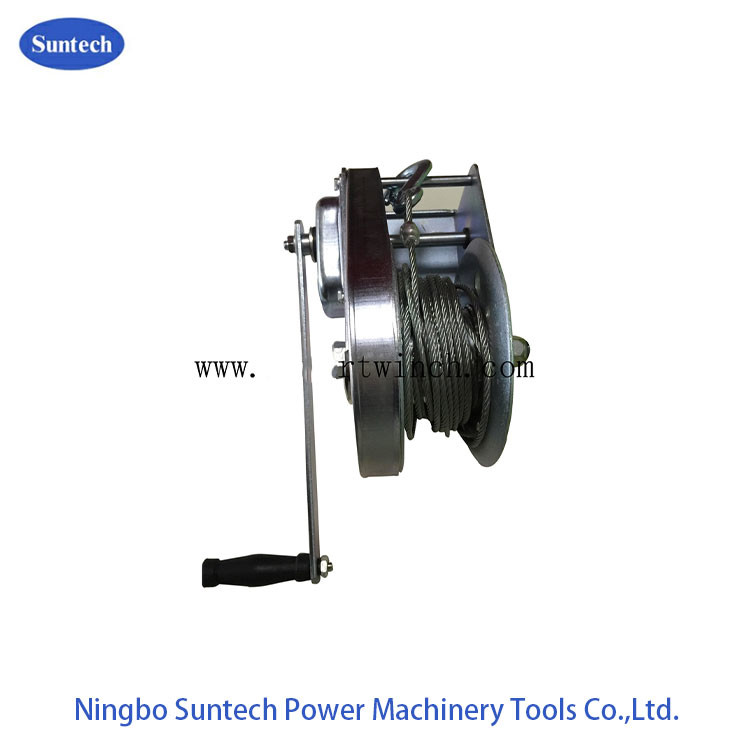

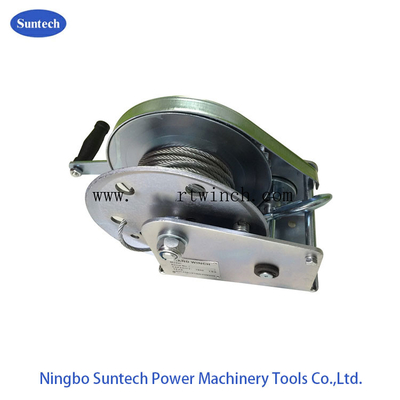

1800lbs CE Approved Zinc Plated Hand Brake Winch For Lifting Industrial Area
Newart has a Marine hand winch to meet the particular needs of your job or installation.
Match a Newart hand winch to your needs and available space and you're ready to go to work. For installation purposes, all dimensions should be verified.
Hand brake winch can be used in the snow,swamp,desert,beach and harsh environment,such as muddy road on the vehicle itselft,to remove obstacles,drag and drop items,slso can be used as a modern electonic control automatic production line equipment,transportation,railway construction etc.
Product Name: Automatic Brake Winch
Work Load: 1800lbs
Gear Ratio: 5:1
Brake Winch With Wire Rope
Surface Treatment:Zinc Plated
Model | LDE1200C | LDE1800C | LDE2600C |
Safe working load (Lbs) | 1200 | 1800 | 2600 |
Test load (KN) | 8 | 12.13 | 17.64 |
Drum-hub Diameter (mm) | ¢48.5 | ¢60 | ¢80 |
Gear ratio | 4.2:1 | 5:1 | 10:1 |
Hand length (mm) | 210 | 320 | 320 |
N.W/G.W (kg) | 3.7/4.5 | 8.1/9.0 | 10.4/11.5 |
Package size (cm) | 16X16X22 | 35X20X23 | 35X24X24 |
