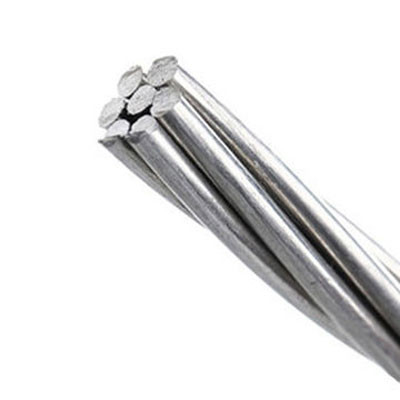

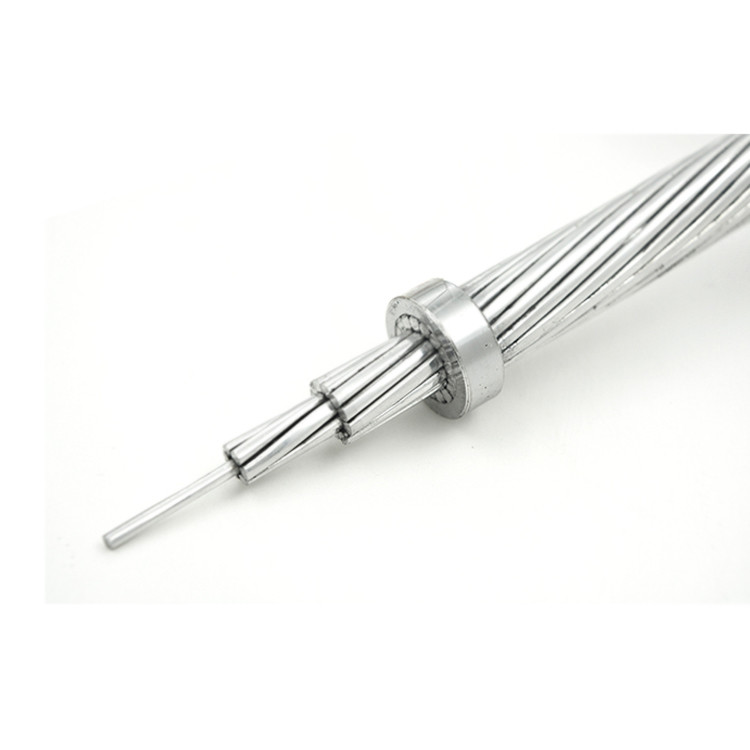

| AAAC-alle Leiders van de Aluminiumlegering | ||||
| INDISCHE NORM (IS 398 DEEL 4) | ||||
| CODEnaam | GEBIED (mm2) | GROOTTE | GEWICHT | Huidig Laadvermogen bij 45oC* (Ampère) |
| Al/St/Dia. | (Kg/Km) | |||
| (mm.) | ||||
| Mol | 15 | 3/2.50 | 40.15 | 65 |
| Eekhoorn | 22 | 7/2.00 | 60.16 | 105 |
| Wezel | 34 | 7/2.50 | 94 | 155 |
| Konijn | 55 | 7/3.15 | 149.2 | 210 |
| Wasbeer | 80 | 7/3.81 | 218.26 | 290 |
| Hond | 100 | 7/4.26 | 272.86 | 325 |
| Hond-op | 125 | 19/2.89 | 342.51 | 360 |
| Coyote | 148 | 19/3.15 | 406.91 | 400 |
| Wolf | 173 | 19/3.40 | 474.02 | 460 |
| Wolf-op | 200 | 19/3.66 | 549.4 | 480 |
| Panter | 232 | 19/3.94 | 636.63 | 520 |
| Panter-Up1 | 288 | 37/3.15 | 794.05 | 610 |
| Panter-Up2 | 346 | 37/3.45 | 952.56 | 720 |
| Kundah | 400 | 37/3.71 | 1101.63 | 740 |
| Gestreept | 465 | 37/4.00 | 1280.5 | 800 |
| Gestreept-op | 525 | 61/3.31 | 1448.39 | 875 |
| Amerikaanse elanden | 570 | 61/3.45 | 1573.71 | 900 |
| Morkulla | 604 | 61/3.55 | 1666 | 920 |
| Amerikaanse eland-op | 642 | 61/3.66 | 1771.36 | 940 |
| Morkulla-op | 695 | 61/3.81 | 1919.13 | 960 |
| Bersimis | 767 | 61/4.00 | 2115.54 | 1000 |
