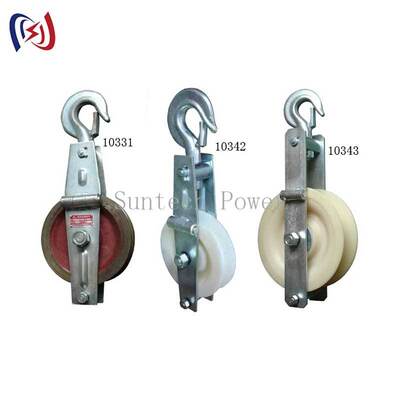

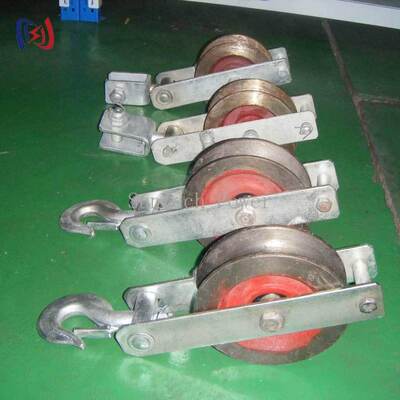

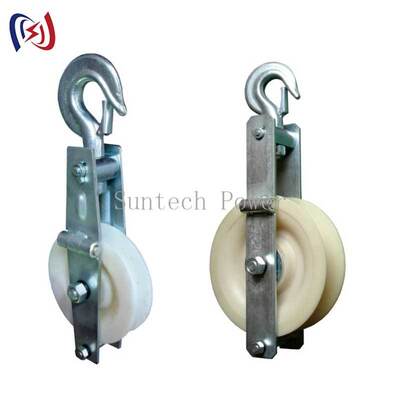

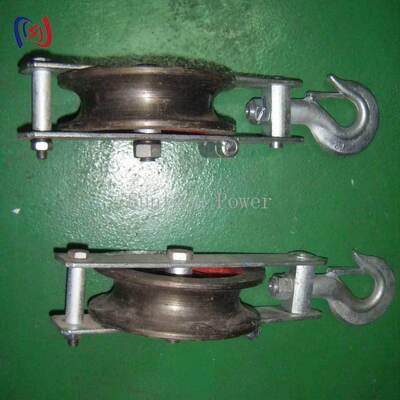

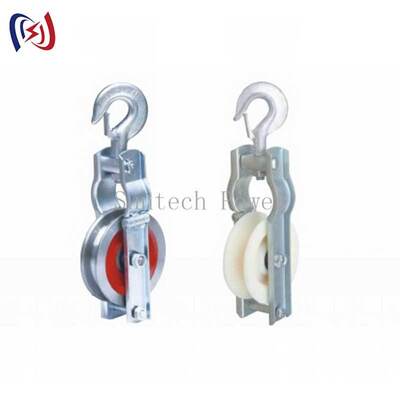

Corrosion Resistant Grounding Wire Stringing Block for Safe OPGW Installation with Low Friction Design

Professional Grounding Wire Stringing Block for Safe and Efficient Earth Wire Installation on Power Lines

• Essential for Protecting Delicate Ground Wire Coatings:​ Ground wires are often galvanized or have other protective coatings to prevent corrosion. A standard metal sheave can scrape or gouge this coating during stringing, creating weak points that rust prematurely. Grounding wire stringing blocks frequently use non-abrasive materials like reinforced nylon or polyurethane for the sheave, which glide smoothly against the wire, preserving the essential corrosion protection for the life of the asset.

• Critical for Safe OPGW Installation:​ OPGW contains optical fibers within a protective outer casing. Installing it requires extreme care to avoid excessive bending, crushing, or twisting that could break the fibers or degrade signal performance. Specially designed grounding wire blocks provide proper support with smooth, rounded grooves that match the OPGW diameter, minimizing stress and preventing micro-bends that are detrimental to optical performance.

• Reduces Friction and Required Pulling Tension:​ Equipped with low-friction bearings or bushings, these blocks allow the ground wire to pay out with minimal resistance. This is especially important for long spans and heavy wires, as it reduces the force needed from the tensioner. Lower pulling tension decreases the risk of overstressing the wire, reduces wear on equipment, and allows for a smoother, more controlled installation process.

• Prevents Wire Damage and Ensures System Integrity:​ The primary purpose of the grounding system is to safely conduct fault currents and lightning strikes to earth. Any damage to the ground wire during installation—such as kinks, crushed strands, or compromised coatings—can create a high-resistance point or a physical weak spot. Using a dedicated stringing block prevents such installation-induced damage, ensuring the grounding system will function as designed when needed most.

• Non-Conductive Design Enhances Work Site Safety:​ Many grounding wire blocks are constructed entirely from non-metallic, dielectric materials. This provides an added layer of safety for crews, especially during initial stringing phases or when working on de-energized lines where induced voltages may be present. It eliminates the risk of the block itself becoming a conductive path in an electrical incident.

• Durable and Weather Resistant for Field Use:​ Built for the demanding conditions of line construction, these blocks are UV-resistant and can withstand exposure to rain, dust, and temperature extremes. Their durability ensures consistent performance and a long service life, making them a reliable tool project after project.

• Lightweight and Easy for Crews to Handle:​ Ground wire installation often occurs alongside conductor stringing. Lightweight blocks are easier for linemen to carry up structures and position accurately. This ergonomic advantage reduces physical fatigue, speeds up setup time, and contributes to overall crew efficiency and safety.

• Versatile for Various Ground Wire Types and Sizes:​ A well-designed grounding wire block can accommodate a range of common ground wire diameters, from smaller static wires to larger OPGW cables. This versatility reduces the need for multiple specialized blocks on the job site, simplifying logistics and tool management for contractors.

• A Cost-Effective Investment in Quality Installation:​ While a specialized tool, a grounding wire stringing block is a relatively minor investment that prevents major costs. It safeguards against the extremely high expense of replacing a damaged section of OPGW or repairing a failed grounding system due to poor installation. It ensures the job is done right the first time.

• Foundational for a Reliable Lightning Protection System:​ The entire lightning protection scheme of a transmission line depends on a continuous, undamaged path to ground. The stringing block is the tool that ensures this critical component is installed without flaws. By protecting the wire during installation, the block plays a direct role in enhancing the resilience and safety of the electrical infrastructure against atmospheric discharges.
